SeismiQ HiDRA

The 6-component High Dynamic Range (HiDRA) sensor is a cost-effective professional seismometer that combines highly sensitive short-period coil transducers with a high-resolution strong-motion MEMS accelerometer. This unique dual-sensor design captures both weak-motion and strong-motion data in a single, connected instrument — eliminating the need for separate deployments.

Adjustable pre-amplification and sampling rate make the HiDRA suitable for local, regional and teleseismic monitoring, induced seismicity surveillance, geothermal operations, and continuous structural health monitoring. DIN 4150 / DIN 45669 certified for regulated deployments.

Quick Facts

• 3-component short-period seismometer with lower cutoff frequency f~c~ of 0.5 Hz and speed proportional characteristic.
• Ultra-low noise 24-bit ADC (RMS ~2 counts; 139 dB) with variable sampling rate of 50 Hz, 100 Hz and 200 Hz and analog pre-amplification 1x, 2x and 4x.
• Low noise 3-component 20-bit MEMS accelerometer with variable sampling rate from 50 Hz, 100 Hz and 200 Hz and configurable range of 2 g and 4 g (optional).
• Time synchronization via external GNSS antenna 📡 or NTP.
• Industrial NAND memory ensures high system reliability.
• Connected over 100 MBit Ethernet.
• Flexible power supply from 9 to 18 V. Power and voltage are monitored.
• Hygrometer, barometer (atmospheric pressure) and thermometer for continuous system and instrument monitoring.

Figure: SeismiQ HiDRA 3-component short-period seismic sensor, and 3-component strong motion accelerometer in an IP67/69 enclosure (the stock image is outdated 🐌).

Resolution and Sensitivity

The HiDRA is using high-quality geophones which are actively dampened by our analog front-end. The ultra-low noise analog front-end is followed by a 24 bit ultra-low noise analog-digital-converter (ADC). This combination ensures a stable analog signal path for a system sensitivity of 0.35 counts/nm/s.

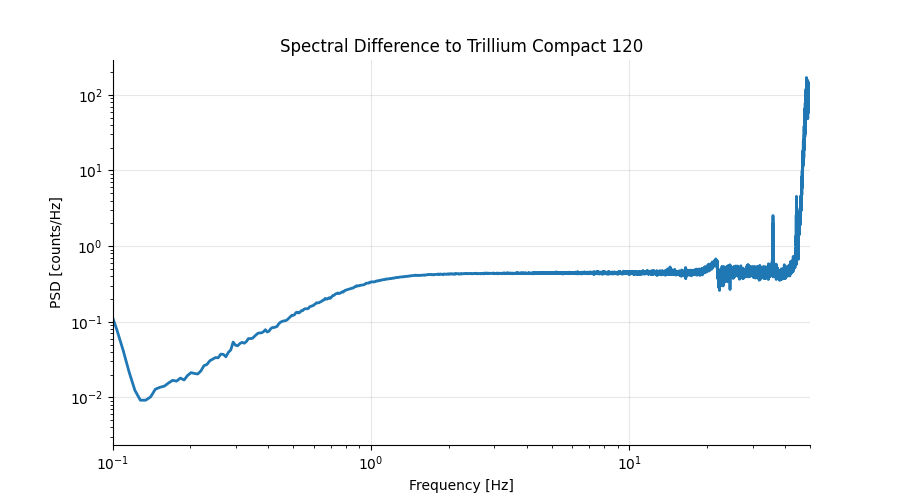

Figure: Spectral difference between 0.1 Hz to 50 Hz to a Trillium Compact 120 broadband seismometer sampled by a Digos DATA-CUBE.

Response Function

The response function of the HiDRA is centered at 2 seconds for both the vertical and horizontal components.

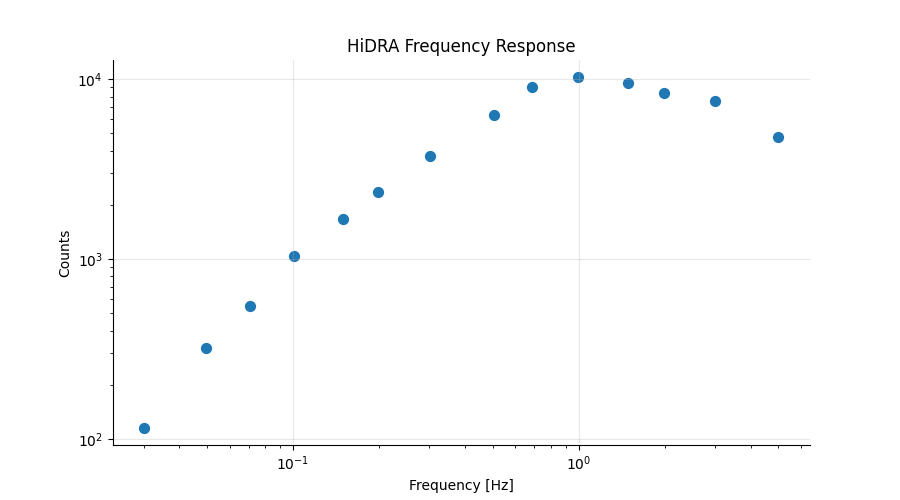

Figure: Empirical frequency response of the HiDRA short-period sensor with a natural corner frequency f~c~ of 1 Hz.

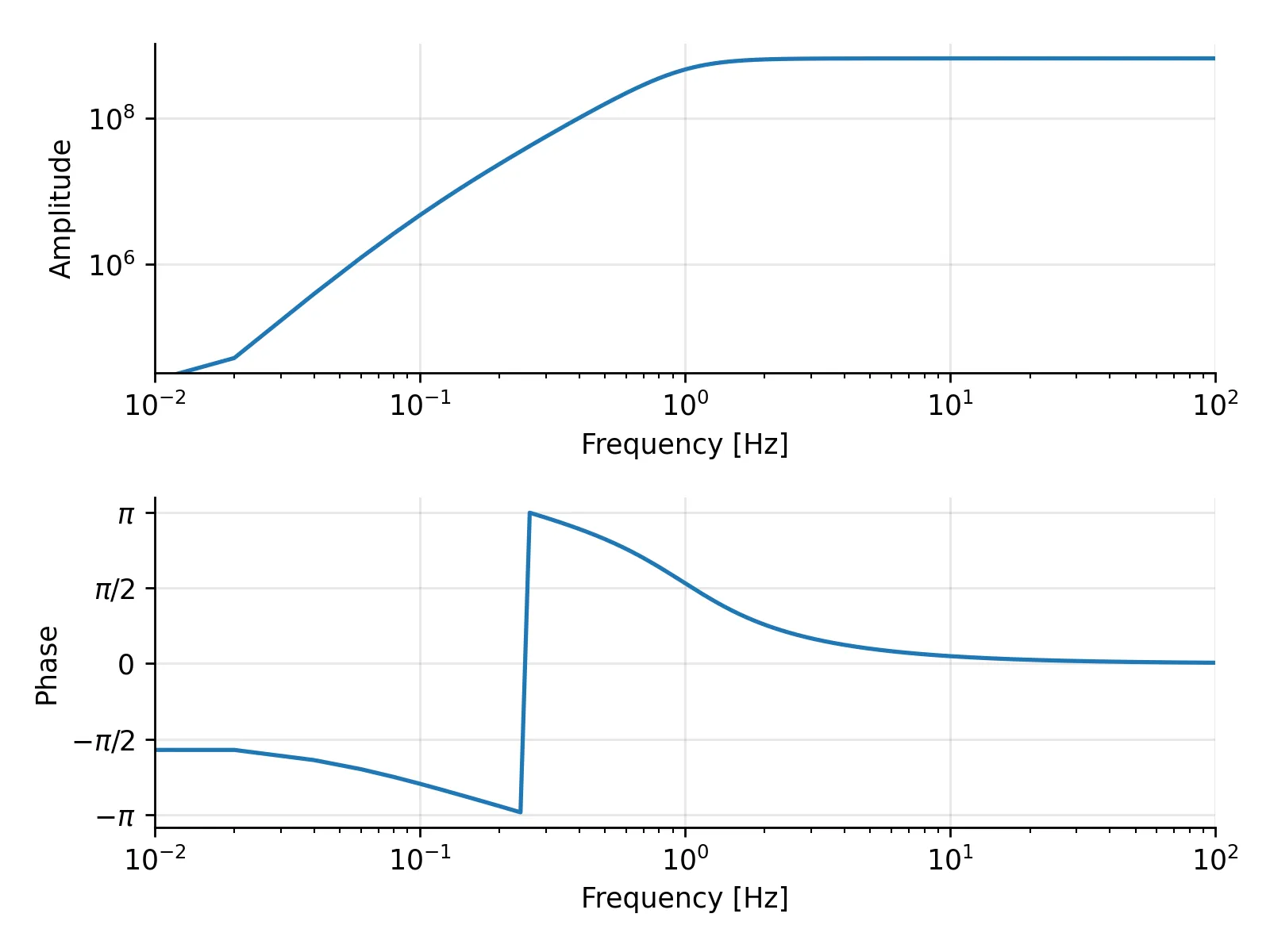

Figure: Response function of the HiDRA short period instrument.

Meta-data Management

All configurable settings (sampling rate and analog gain) are reflected instantly in the meta-data management, compliant to StationXML.

Sampling Rate

The sampling rate of the system can be configured to 100 Hz, 200 Hz, 250 Hz, 400 Hz and 500 Hz. All channels are sampled at the same frequency. The sampling frequency can be configured adjusted on-site or remotely.

For all sampling rates different FIR filters are configurable.

Dynamic Range

The HiDRA features an ultra-low noise analog frontend components and 24-bit analog-digital-converter (ADC), resulting in a self noise of as low as ~2 counts RMS. This leads to an effective dynamic of 139 dB.

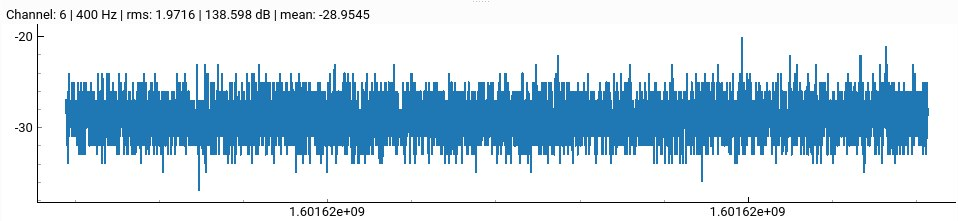

Figure: Self-noise of ~2 counts RMS of the analog digital converter for the 3C short-period HiDRA instrument.

Calibration

Every sensor is calibrated against against a well known high-class broadband seismometer. The calibration values are stored permanently on the instrument an included in the associated response.

Connectivity

The HiDRA sensor is connected over 100 MBit fast Ethernet. If no connection is available the sensor will archive seismic data on the durable NAND data store.

Power Supply and Consumption

The HiDRA can be powered by a 9 - 18 V DC power supply, the average power consumption of the instrument is ~3.8 Watts. This allows off-grid deployments using solar panels, batteries or fuel cells without the need for DCDC converters. The consumption can increase when real-time signal processing chains are calculated on the device, such as more demanding data products like continuous PPSDs.

The power supply and the instrument's consumptions are continuously monitored by the device. This ensures that alarms are triggered timely to operators to take actions and ensure operation of the sensor.

IP67 Enclosure

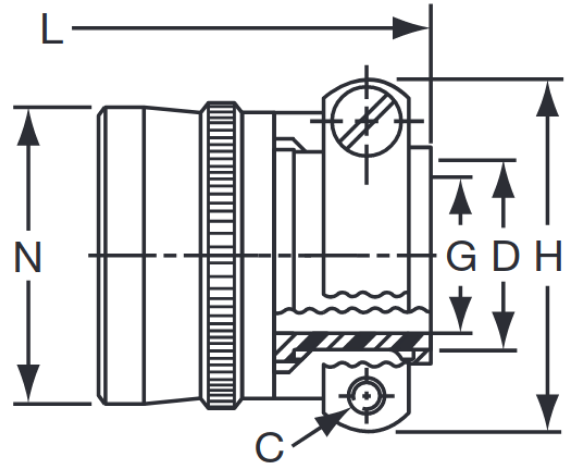

The high-quality aluminum housing protects the sensor from moisture and guarantees durability as well as high reliability. The adjustable tripod and Amphenol (MIL-DTL-26482) bayonet connector allow an uncomplicated setup and commissioning of the sensor even under harsh environmental conditions.

• Resistant aluminum housing for permanent outdoor use with IP67 standard.
• Dimensions are 130x160x85 mm (DLH), weight 1.5 kg.

Operational Temperature

Electrical parts and connectors are selected from industry rated components which provide a stable operation from -20° to 85° C. In freezing cold temperatures the HiDRA can use its computing core to stabilize the inside temperature of the enclosure and the sensitive seismic sensors.

DIN Certification

The SeismiQ HiDRA is certified for DIN 4150 and DIN 45669 — the standard required for vibration monitoring in geotechnical, construction, and geothermal applications. All units ship with the certificate included.

Geothermal & Infrastructure

The DIN 4150 / DIN 45669 certification makes the HiDRA the instrument of choice for induced seismicity monitoring in geothermal operations, underground construction, and critical infrastructure projects where regulatory compliance is mandatory.
